CASE CCTV Products

CS-I5XQ -2.8mm

.Metal housing

.Up to 5MP,2880×1620@30fps

.S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

.Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR

.IR range up to 30m

.Built-in Mic, Built-in Speaker

.Support microSD/microSDHC/microSDXC card,up to 512GB

.Support smart surveillance, face capture

.Support human/vehicle classification

.Operating conditions -40~65 (-40~149 ), ≤95%RH

.DC12V±25%,Max. 6.5W, PoE:IEEE 802.3af,Max. 8W

.IP66

CS-I5XS 2.8mm

·Metal+Plastic Housing
·Up to 2592X1944@20fps
·S+265/H.265/H.264
·Min. illumination Color: 0.002Lux@F1.6
·120dB WDR
·Smart IR, IR Range: 30m
·Support tripwire and perimeter
·Operating Conditions -40°C~60°C, 0~95% RH
·Built-in Mic, SD Card Slot, Reset Button
·POE, IP67

CS-I8XQ M-2.8mm

·Default: Metal Housing
·Up to 3840X2160@20fps
·S+265/H.265/H.264
·Min. illumination Color: 0.003Lux@F1.6
·120dB WDR
·Support tripwire and perimeter
·Support Human/Vehicle Classification
·Operating Conditions -40°C~65°C, 0~95% RH
·Built-in Mic, SD Card Slot
·POE, IP67

CS-I8XS M-2.8mm

·Full Metal Housing
·Up to 3840X2160@20fps
·S+265/H.265/H.264
·Min. illumination Color: 0.003Lux@F1.6
·120dB WDR
·Smart IR, IR Range: 30m
·Support tripwire and perimeter
·Operating Conditions -40°C~65°C, 0~95% RH
·Built-in Mic, SD Card Slot, Reset Button
·POE, IP67

CS-I8WQ 2.8mm

·Metal housing
·Up to 3840×2160@25fps
·S+265/H.265/H.264/H.264M/H.264H/Motion JPEG
·Min. illumination Color: 0.002Lux@F1.6
·Smart IR, IR Range: 50m
·Support tripwire, perimeter
·Support Human/Vehicle Classification
·Support Smart surveillance
·Built-in Mic, SD Card Solt, Reset Button
·Operating Conditions -40°~65°, 0~95% RH
·POE, IP67

CS-I8WS M-2.8mm

.Full Metal Housing

.Up to 3840×2160@20fps

.S 265/H.265/H.264

.Min. illumination Color: 0.003Lux@F1.6

.120dB WDR

.Smart IR, IR Range: 50m

.Support tripwire and perimeter

.Built-in Mic, SD Card Slot, Reset Button

.Operating Conditions -40℃~65℃, 0~95% RH

.POE, IP67

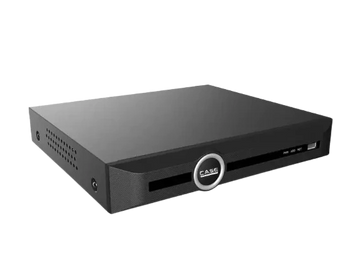

CS-N105 P4

• Plug and play
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• 4 PoE ports
• 1 SATA interfaces, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
• 1×RJ45 self-adaptive 10/100 Mbps network interface

CS-N110 P8

• Plug and play
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• 8 PoE ports
• 1 SATA interface, up to 10TB for 1 HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
• 1×RJ45 self-adaptive 10/100 Mbps network interface

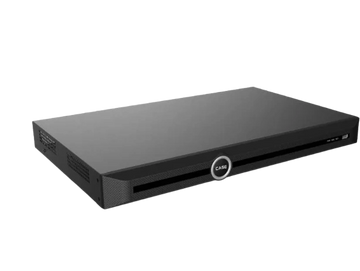

CS-N220 P16

HD Input
• Plug and play
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 20-channel input
• 16 PoE ports
• Supports live view, storage, and playback of the
connected camera at up to 8MP resolution

HD Output
• 1×HDMI and 1×VGA simultaneous outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage
• 2 SATA interfaces, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
